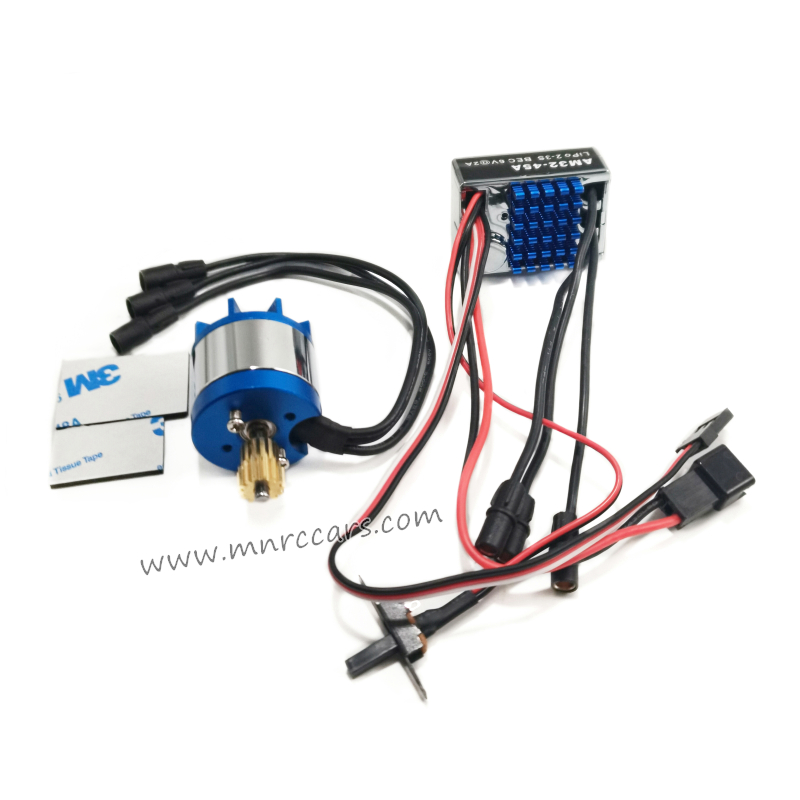

MN Model MN128 Upgrade Parts outer rotor brushless motor, 45A ESC

MN MODEL MN128 Parts

• Parts Name: outer rotor brushless motor, 45A ESC
• Compatible Model: MN-128
• Type:  Upgrade Parts
• Quantity: 1set

PLEASE Note

• Receiver replacement is required for modification. Click here to purchase: MN Model MN128 RC Crawler Parts Receiver.
• The battery interface is the same as that of the original car, so the original car battery can be used. It is recommended to use a 2s battery.
• The sand - proof performance of the outer rotor is relatively weak. When using it, care should be taken to prevent foreign objects from entering the interior of the motor and causing damage.
• Outer rotor motor model: 2322 2600kv outer rotor brushless motor with 45A brushless ESC, featuring torque compensation function, special for climbing cars.

Installation instructions

• Connect the outer rotor motor to the banana plug interface of the ESC. Plug the AM32 ESC into channel 2 (throttle channel) of the receiver, and connect the battery.
• After the motor and ESC are installed, turn on the ESC and remote control switches. Two beeps will be heard. Then adjust the front - rear fine - tuning middle position knob of the controller. Only after hearing one beep can you operate.

2322 2600KV Motor Specifications

1. Operating Voltage Range: 5.5-9V
2. Rated Voltage: 7.2[VDC]
3. No-Load Current: Max 1200[mA]
4. No-Load Speed: 19000±10%[rpm]
5. Load Torque: 100[gf.cm]
6. Load Speed: 17000+10% [rpm]
7. Direction: CCW/CW (as viewed from output shaft end)
8. Insulation Class: B
9. Axial Clearance: Max 0.3[mm]
10. Teeth Count: 10T
11. Shaft Diameter: 2mm

AM32 45A ESC Specifications

1. Voltage: 7.4-11.1V
2. Lithium Battery: 2-3S
3. Battery Connector: SM3.0
4. Compatible Motor: 2322 2600KV
5. Dimensions: 38.5*28*18.5mm
6. Applicable Models: MN82 MN99S MN168 MN78
7. Housing Material: Plastic

>>> MN MODEL MN128 Upgrade Parts

How to tell the new MN128 from the old one?

• New version: Separate receiver + separate ESC.
• Old version: All-in-one control board.

>>> MN MODEL MN128 Parts

About MN Model MN 128 RC Car

The MN Model MN128 RC car features a 390 strong-magnet motor, a 7.4V 1200mAh battery, a 25g waterproof servo, and a top speed of around 8 km/h.
