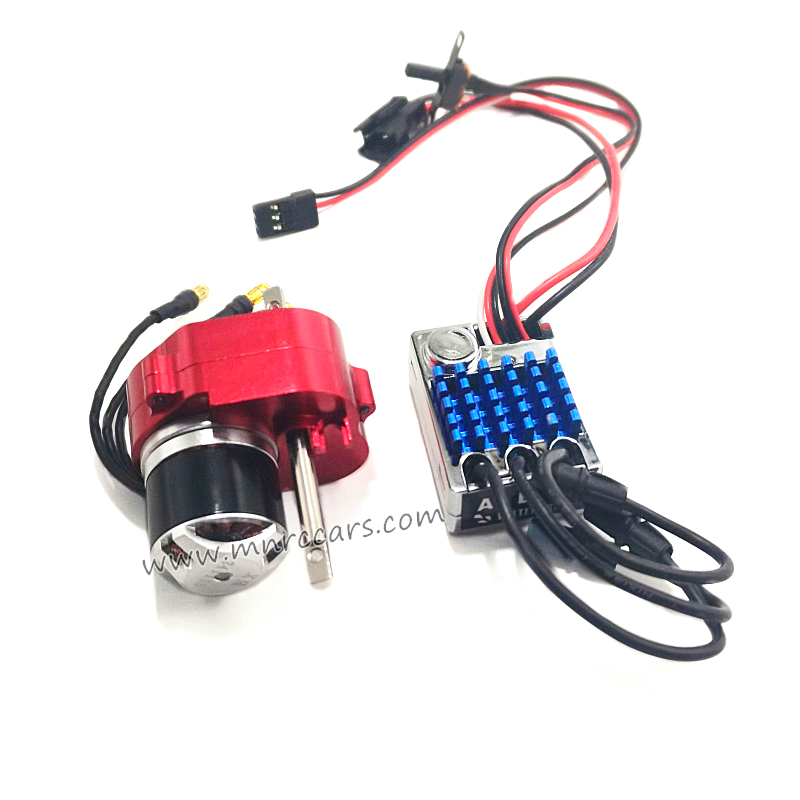

MN Model MN168 Upgrade Parts Outer rotor brushless motor, all-metal gearbox, 45A ESC Kit

MN MODEL MN168 Parts

• Parts Name: Outer rotor brushless motor, all-metal gearbox, torque boost ESC Kit
• Compatible Model: MN78, MN82, MN82S, MN82Pro, MN99S(V2), MN168
• Type:  Upgrade Parts
• Quantity: 1set

PLEASE NOTE

• Receiver replacement is required for modification.
• The battery interface is the same as that of the original car, so the original car battery can be used. It is recommended to use a 2s battery.
• The sand - proof performance of the outer rotor is relatively weak. When using it, care should be taken to prevent foreign objects from entering the interior of the motor and causing damage.
• Outer rotor motor model: 2322 2600kv outer rotor brushless motor with 45A brushless ESC, featuring torque compensation function, special for climbing cars.

MN Model MN168 Outer Rotor Motor Installation Instructions

• Connect the outer rotor motor to the banana plug interface of the ESC. Plug the AM32 ESC into channel 2 (throttle channel) of the receiver, and connect the battery with a T - plug.
• After the motor and ESC are installed, turn on the ESC and remote control switches. Two beeps will be heard. Then adjust the front - rear fine - tuning middle position knob of the controller. Only after hearing one beep can you operate.


What are the features of the MN Model MN168 Outer Rotor Motor?

• Slow linear motion is excellent, with minimal modification costs.
• Optimized appearance with anodic oxidation treatment on the surface.
• The gearbox shell is made of aluminum alloy, with a firm and durable structure, effectively solving the problem of easy damage of plastic.
• The gears are steel gears made by powder metallurgy process, and are not easy to strip teeth.

2322 2600KV Motor Specifications

1. Operating Voltage Range: 5.5-9V
2. Rated Voltage: 7.2[VDC]
3. No-Load Current: Max 1200[mA]
4. No-Load Speed: 19000±10%[rpm]
5. Load Torque: 100[gf.cm]
6. Load Speed: 17000+10% [rpm]
7. Direction: CCW/CW (as viewed from output shaft end)
8. Insulation Class: B
9. Axial Clearance: Max 0.3[mm]
10. Teeth Count: 10T
11. Shaft Diameter: 2mm

AM32 45A ESC Specifications

1. Voltage: 7.4-11.1V
2. Lithium Battery: 2-3S
3. Battery Connector: SM3.0
4. Compatible Motor: 2322 2600KV
5. Dimensions: 38.5*28*18.5mm
6. Applicable Models: MN82 MN99S MN168 MN78
7. Housing Material: Plastic

Note: brushless outer rotor motor, all-metal gear, metal gearbox shell, 45A brushless ESC with ultra-low speed torque compensation function.

About MN Model MN 168 RC Car

• Motor: 280 motor
• Steering Gear: 17g waterproof steering gear
• Body Battery: 7.4V 1200mAh
• Remote Control Time: 30–40 min
• Charging Time: 120–180 min
